Description

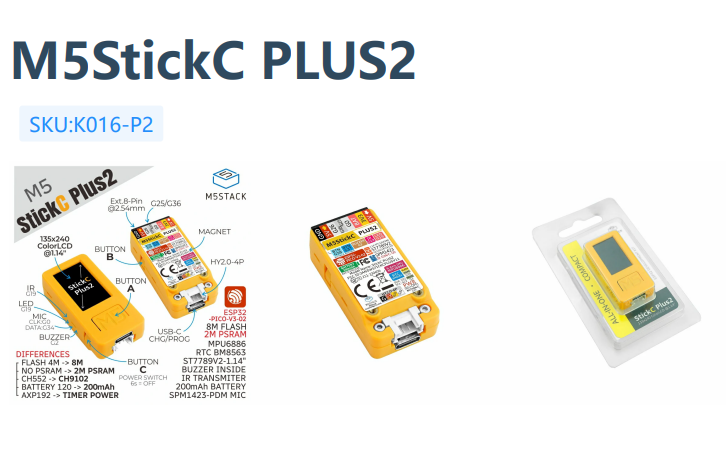

M5StickC PLUS2 is an iterative version of M5StickC PLUS, featuring the ESP32-PICO-V3-02 chip as the main controller with built-in WiFi functionality. The compact device integrates a wealth of hardware resources within its small form factor, including infrared, RTC, microphone, LED, IMU, buttons, buzzer, and more. It boasts a 1.14-inch TFT screen with a resolution of 135*240, driven by the ST7789V2. The battery capacity has been increased to 200mAh, and the interface also supports HAT and Unit series products. This compact and versatile development tool is designed to spark limitless creative possibilities.
M5StickC PLUS2 facilitates the rapid prototyping of IoT products, streamlining the entire development process. Even beginners in programming can easily build interesting applications and apply them to real-life scenarios using M5StickC PLUS2.
Features
  • ESP32-­PICO-­V3-­02-Base，support WiFi
  • Built-in 6-Axis IMU
  • IR transmitter
  • Microphone
  • RTC
  • Buttons, LCD(1.14 inch)
  • Built-in Lithium Polymer Battery@200mAh
  • Extendable Socket
  • Built-in Passive Buzzer
  • Wearable & Wall mounted
  • Compatible with multi-platform development:
    • UIFlow
    • MicroPython
    • Arduino
    • .NET nanoFramework
Includes
  • 1x M5StickC Plus2
Applications
  • Internet of things terminal controller
  • Wearable devices
  • Stem education product
  • DIY creation
Specification
ResourcesParameters
ESP32ESP32-PICO-V3-02
240MHz dual core,support wifi,2 MB SPI PSRAM,8 MB SPI flash
PSRAM2 MB PSRAM
Flash8 MB flash
Power Input5V @ 500mA
PortTypeC x 1, GROVE(I2C+I/0+UART) x 1
LCD screen1.14 inch, 135*240 Colorful TFT LCD, ST7789v2
ButtonCustom button x 3
LEDGREEN LED
MEMSMPU6886
Buzzerbuilt-in buzzer
MICSPM1423
RTCBM8563
Battery200mAh @ 3.7V
Antenna2.4G 3D Antenna
PIN portG0, G25/G36, G26, G32, G33
Operating Temperature0°C to 60°C
Case MaterialPlastic ( PC )
Product Size48*25*13mm
Package Size114*64*23mm
Product Weight17g
Package Weight24.8g

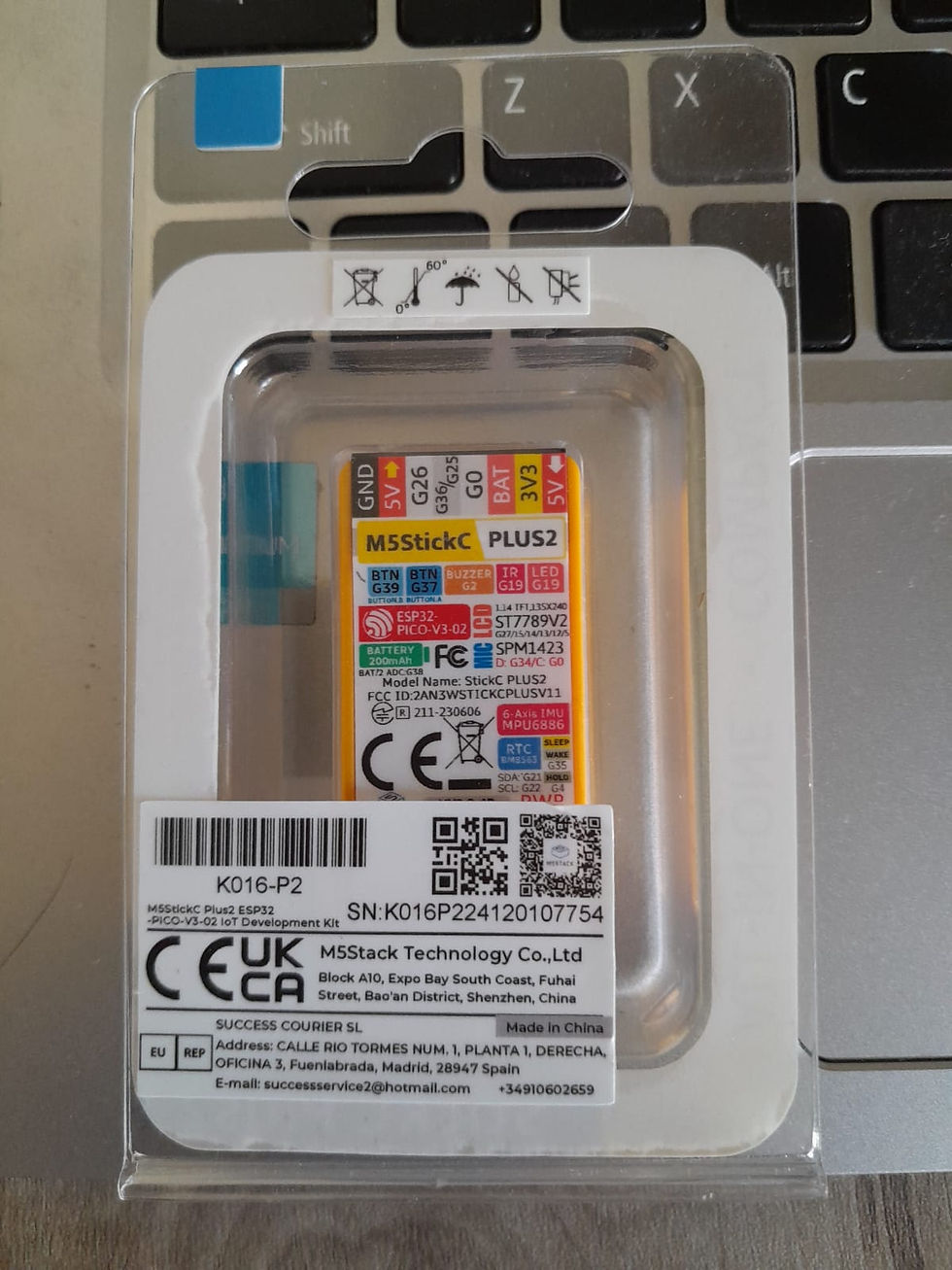

M5StickC PLUS2 ESP32 Mini IoT Development Kit

SKU: M5STACK
₹2,999.00Price
